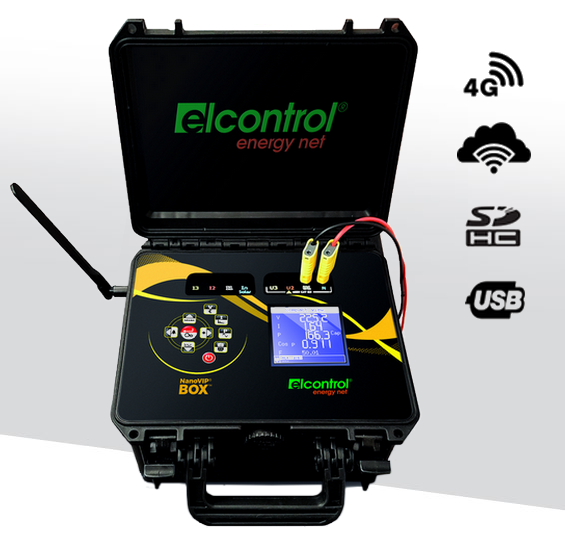

NANOVIP® BOX™
4G self-powered portable analyzer of the power quality of electrical networks
NanoVIP® BOX™ is an advanced and powerful Class S portable network analyzer, self-powered, developed for the professional analysis of consumption and power quality of the most complex electrical networks.
Can be used on single-phase, two-phase, three-phase systems (balanced or not), in low and medium voltage, self-powered from the measurement line and equipped with 4G communication which allows it to use the Elcontrol cloud, be driven via SMS or remotely controlled via the Elcontrol App .
NanoVIP® BOX™ is particularly suitable for those professionals who frequently carry out field checks and/or prolonged measurement campaigns; self-powering through the measurement line does not require the availability of a 110/220VAC power outlet which is almost never available in the field while 4G communication offers total control of the instrument from your office.
Autoalimentato con comunicazione 4G
- It does not require an external power supply because it is powered by the same voltage measurement line.
- Rechargeable buffer battery to guarantee operation for over 24h in the event of a voltage absence/dip.
- 4G communication for: control via SMS, connection to the Elcontrol Cloud and direct remote control from PC/App
- Download remote measurement campaigns
- Full coverage of EN50160 measurements and tests
- Can be used on systems: single-phase, two-phase, balanced three-phase with or without neutral, unbalanced three-phase with or without neutral
- Current and voltage harmonics for each phase and for the neutral up to the 50th (7th at 400Hz)
- Creation of long-term measurement campaigns (over 24 autonomously, unlimited if connected to the network)
- Free use of Elcontrol Cloud included
Applications
The NanoVIP BOX is a handy, compact and light tool aimed both at those who want to operate on their own systems and at professionals in the sector who need detailed and precise energy quality analyses; NanoVIP allows you to easily and intuitively:
- Keep the loads, consumption and related network costs under control
- Check the correct sizing of the systems during service
- Prevent the risks of overheating and lack of insulation due to high harmonic content
- Correctly solve power factor correction problems
- Identify and eliminate load peaks and power excesses in order to reduce the contractual electricity commitment
- Verify and evaluate the yields of UPS, with ac/dc measurements
- Measure even non-symmetrical signals for pwm controls on inverters
- Identify the presence of harmonics, interruptions, overloads or voltage dips potentially harmful to machinery and systems
- Intercept fluctuations and fast variations of current and voltage signals
- Measure inrush currents of electrical motors and machinery
Brochure NanoVIP® BOX™ 340 kb 27 downloads
Self powered Power Quality analyzer with 4G connectivity ...| Standard | IEC61000-4-30 Class S |
| Dimensions | 260x240x170mm |
| Safety | 600V CAT III |
| Protection | IP30 |
| Weight | 435g. |
| Display type | LCD dot matrix white backlight |
| Languages | Inglese – Spagnolo – Italiano – Tedesco – Francese |
| Communication | 4G + USB to PC |
| Internal memory | 64kB |
| External memory | Micro SD (min 4Gb included) |
| Temperature | da -10 a +55 °C |
| Umidity | Max 95% |
| Power supply | Not required; self-powered |
| Battery | 4 x AA MiMh 2100mAh |
| Battery charge duration | >24h |
| Monophase/biphase systems | Yes |
| Threephase systems 4 wires (balanced/unbalanced) | Yes |
| Threephase systems 3 wires (balanced/unbalanced) | Yes |
| Energy and power analisys | V, I, P, Q, S, F, PF, THD(V)%, THD(I)%, cosj, j, peaks, min, max, averages, max. demand, ecc. |
| Counters | kWh, kVArh, kVAh absorbed and generated |
| Wave forms | V e I |
| Harmonics | Up to 50th |
| Sags | Dips, swells and interruptions |
| Transients | Overcurrents and overvoltages |
| Test EN 50160 | Yes |
| inrush | Yes |
| DC measures | Yes |
| K factor | Up to 25th |
| Alarms | Display |
| Log alarms | 5 |
| Tariffs | 4 |
| Energy costs | Yes |
| Surveys | unlimited up to SD availability (4Gb) |
| Display data update | 1 sec. |
| Suitable systems | Three phase (3 o 4 wires) biphase and monofase |
| Networks | LV and MV |
| Voltages (TRMS) | 4 channels (3 + neutral + 1 auxiliary) |
| Currents (TRMS) | 5 channels |
| Powers | Active, reactive and apparent. 3Ph and each phase |
| Counters | kWh, kvarh, kVAh |
| Harmonics | Up to 50th |
| EN50160 | All events over 500mS |
| Transients | Overvoltages, overcurrents and inrush |
| CE | 93/68/CEE |
| 89/336/CEE e 2004/108/CE | |
| 2006/95/CE – 72/23/CEE | |
| 2002/95/CE | |
| 2002/96/CE e 2003/108/CE | |
| Safety | EN 61010-1 |
| EMC | EN 61326 |
| EN 61326/A1 | |
| EN 61326/A2 | |
| EN 61326/A3 | |
| Temperatures | IEC 60068-2-1 |
| IEC 60068-2-2 | |
| Vibrations | IEC 60068-2-6 |
| Umidity | IEC 60068-2-30 (umidità) |
| Overload | IEC 60947-1 |
| 4NANB | NANOVIP BOX WITH PINZE 3xTRUEFLEX CLAMP 600mm 3kA |
| 4NANBA | NANOVIP BOX WITH PINZE 3xCLAMP CT 200A/1VAC |
| 4NANBB | NANOVIP BOX WITH PINZE CLAMPS 3x200A + 3x3kA NANOFLEX |
| 4NANBD | NANOVIP BOX WITH PINZE CLAMPS 3x1000A |
| 4NANBN | NANOVIP BOX WITH PINZE 3xNANOFLEX CLAMP 600mm 3kA |
| PART | Quantity | Standard/Option |
| NanoVIP BOX | 1 | Standard |
| Battery | 1 | Standard |
| Voltage cables | 4 | Standard |
| Crocodiles | 4 | Standard |
| microSD min 4Gb | 1 | Standard |
| microSD adapter | 1 | Standard |
| Packaging | 1 | Standard |
| Calibration certificate | 1 | Standard |
| AC Current sensors | 3 or more | Option – according to kit |
| DC Current sensors | 1 or more | Option – according to kit |
