Tools and components

PTS4 – The original

Stripper and cutter in one tool

Elcontrol Energy Net Srl designed and builds still today the original model of the famous cut pliers and wire stripper type PTS4.
The PTS4 is suitable to peel individual flexible electric cables from 0.2 to 6 square millimeters. For the outer sheaths of one or multicore cables you can vary the pressure of the cutter with adjustment.
The length of the cable stripping is adjustable up to 20 millimeters.
The stripping of insulation is done without the handler is damaged.

PTS4 is the unique that can be guaranteed as 100% MADE IN ITALY.

Resistant, Practice and Precise

  • Strong execution of pressed steel, epoxy painted, and nylon-glass material
  • tempered steel blades
  • probes that allow a firm grip on the sleeve and a self adaptability of the clamp to the various cable diameters, resulting in perfect stripping without incisions on copper wire
  • Block cable clamp with feedback on millimeter scales, side, for an exact determination of the stripped length
  • adjustment to vary the pressure of the blades and outer sheaths for cables of three-pole

Usage

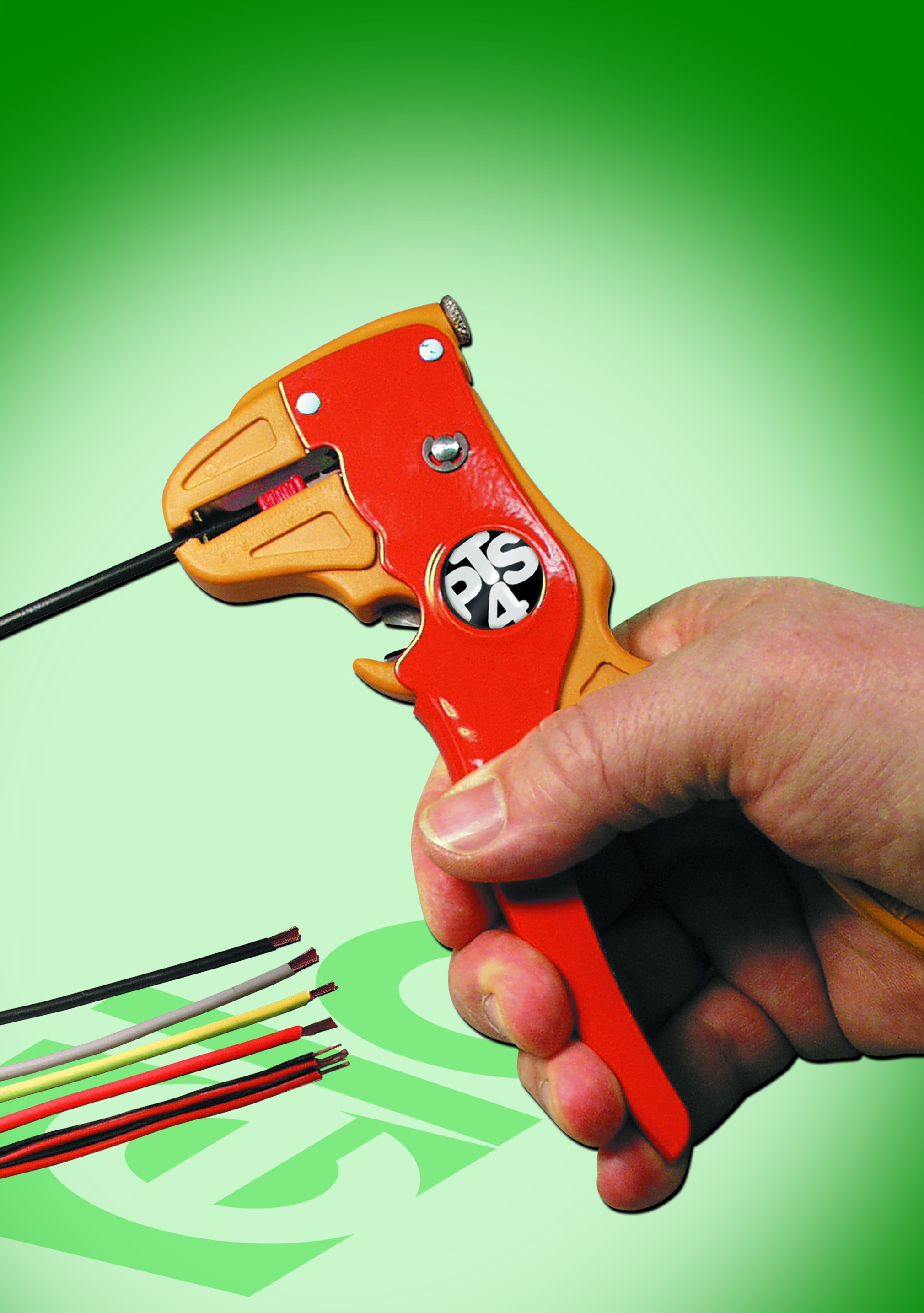

PTS4 has two functions: it can shear and peel without any adjustment single or multiple flexible electric cables from 0.2 to 6.0 mm square section.
