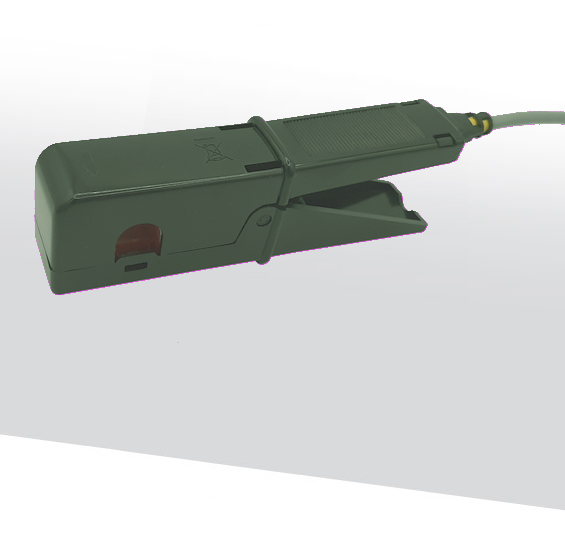

Current clamp MN03

AC current clamp for NanoVIP® power quality analyzers

Amperometric mini-clamp for AC currents from 0.2 A to 100 A with with reduced dimensions and light weight.

IN_STOCK_ICON
Modelli disponibili in stock
BUY_ONLINE_ICON
Acquistalo online

Compact, light and cost effective

  • Can be used on NanoVIP® family analyzers without the need for external power supply or amplification.
  • Designed for the measurement of alternating currents in a wide range of values: from 0.2A to 100A
  • Compact and light
  • The shape of the pliers makes it easy to hook onto the cables, even in the smallest areas.
  • The grippers can grip conductors up to 10 mm in diameter.
  • The precision that it offers on the whole measuring range allows it a very wide use (from civil to industrial)
  • The shape allows a safe use even when wearing safety gloves
  • Optionally adapters are available to use it on older generation of Elcontrol analyzers, without automatic clamp recognition

Characteristics

The MN03 current clamp can be used on all analyzers of the NanoVIP® family to measure AC currents up to 100 A.
The particularly compact dimensions make it a highly ergonomic tool, easy to place and with minimal space requirements.

MN03 AC clamp can be used on all the analyzers of the latest generation of NanoVIP® family except for the DS model that can only mount the DC clamp.

For the older NanoVIP® analyzers, suitable adapters are available to allow their use.

Icon

Brochure pinza amperometrica MN03 139kb 53 downloads

Brochure pinza amperometrica MN03 per correnti AC fino a 100A per analizzatori serie...
Measured range 0,2 A up to 100A
Operating voltage 600V rms
Output signal 0.01V AC / A AC (1,0 V for 100A)
Bandwidth 40 Hz …10 kHz
Dimensions 125x36x25 mm
Weight 100g
Operating temperature -10 °C to +55 °C
Storage temperature -40 °C to +70 °C
Clamping capacity: Cable: Æ max 10 mm
4AR03 MN03 AC CURRENT CLAMP 100A
